Synchronization in Linkora

calendar_clock

Feb 16, 2025 01:05 PM IST

The following rendered output is parsed using a custom parser based on the CommonMark spec.

 uses multiple

techniques

 to make sure the data is synced with the remote database even when the

self-hostable sync-server

 is not up (i.e., Linkora will push changes once the server is up the next time). Most of the important parts of this implementation happen in the app because it's the source of the data, so we'll have fine control over what's supposed to be pushed and what's not.

Linkora supports

Two-Way Sync

 synchronization. It's up to people who use the app to decide how to use the syncing method. Linkora supports:

•

Client To Server

•

Server To Client

•

Two-Way Sync

Based on the selected option, Linkora will handle the respective implementations.

All this in a nutshell looks like:

suspend fun syncData() {
   if (canPushToServer()) {
      pushUnSyncedDataToServer()
   }

   if (canReadFromServer()) {
      establishSocketConnectionAndPerformOperations()

      getTombstonesInfoFromServer(after = TIME_STAMP).let {
         deleteFromLocalDataBasedOnTombstones(it)
      }

      getNewUpdatesFromServer(after = TIME_STAMP).let {
         updateLocalDataBasedOnRemoteUpdates(it)
      }
   }
}

content_copy

By this, it is straightforward to understand that if the sync type is set to

Two-Way Sync

, both of these conditional blocks will be true. Hence, we need to implement

Client-to-Server

and

Server-To-Client

.

1. Client-to-Server

In this case, we only need to consider:

1. Pushing

CREATE

•

UPDATE

•

DELETE

 operations that happen locally.

That's all we care about. But there may be cases when the

sync-server

 might not be up. In that case, we need to save what's supposed to be pushed so that whenever the server and app are up, the app can send those changes. This also makes it local-first, as irrespective of server changes; it will always update locally.

Now, the first thing is to

try saving locally and then pushing the changes

. There are many operations where we need to push changes to the server, so I made a generic function that works for all these cases where we need to perform local operations and then push to the remote server:

fun <LocalType, RemoteType> performLocalOperationWithRemoteSyncFlow(
   performRemoteOperation: Boolean,
   remoteOperation: suspend () -> Flow<Result<RemoteType>> = { emptyFlow() },
   remoteOperationOnSuccess: suspend (RemoteType) -> Unit = {},
   onRemoteOperationFailure: suspend () -> Unit = {},
   localOperation: suspend () -> LocalType
): Flow<Result<LocalType>> {
   return flow {
      emit(Result.Loading())
      val localResult = localOperation()
      Result.Success(localResult).let { success ->
         if (performRemoteOperation && canPushToServer()) {
            remoteOperation().collect { remoteResult ->
               remoteResult.onFailure { failureMessage ->
                  success.isRemoteExecutionSuccessful = false
                  success.remoteFailureMessage = failureMessage
                  onRemoteOperationFailure()
               }
               remoteResult.onSuccess {
                  remoteOperationOnSuccess(it.data)
               }
            }
         }
         emit(success)
      }
   }.catchAsThrowableAndEmitFailure(init = {
      if (performRemoteOperation && canPushToServer()) {
         onRemoteOperationFailure()
      }
   })
}

content_copy

It may seem like a lot is happening, but it's not. What this does is:

1. Perform local operation.

2. Try to push changes. If successful, the operation is successful.

3. If pushing fails,

onRemoteOperationFailure()

 will be triggered if the sync type is set to

Client-to-Server

or

Two-Way Sync

.

Now we need to figure out how to save the operations locally when there's a failure on the remote server (mostly because the server is down), so once the server is up, Linkora App can send those operations.

For that, I have a table called

PendingSyncQueue

:

@Entity("pending_sync_queue")
data class PendingSyncQueue(
   @PrimaryKey(autoGenerate = true) val id: Long = 0,
   val operation: String,
   val payload: String
)

content_copy

Now, the

operation

 refers to the endpoint at which the operation needs to be performed, and the

payload

 is the body of the POST request.

A simple example of how this is done:

onRemoteOperationFailure = {
   pendingSyncQueueRepo.addInQueue(
      PendingSyncQueue(
         operation = RemoteRoute.Link.ARCHIVE_LINK.name,
         payload = Json.encodeToString(
            IDBasedDTO(
               linkId, eventTimestamp
            )
         )
      )
   )
}

content_copy

Where

every

 DTO contains

correlation

. Here, the

IDBasedDTO

 looks like:

@Serializable
data class IDBasedDTO(
   val id: Long,
   val eventTimestamp: Long,
   val correlation: Correlation = AppPreferences.getCorrelation(),
)

@Serializable
data class Correlation(
   val id: String, val clientName: String
)

content_copy

Correlation

 helps in identifying the client which performs the operation, because we don't want to perform locally after reading remote updates if that update was performed by us. If done by a different client, it won't match our

Correlation

, so we can perform that knowing we're not the source.

Now, once the server and app are both online, we can send queued data from

PendingSyncQueue

. For the same example considered earlier, here's how it will be sent:

when (queue.operation) {
   ARCHIVE_LINK.name -> {
      val idBasedDTO = Json.decodeFromString<IDBasedDTO>(queueItem.payload)
      val remoteLinkId = localLinksRepo.getRemoteLinkId(idBasedDTO.id)
      remoteLinksRepo.archiveALink(idBasedDTO.copy(id = remoteLinkId))
         .removeQueueItemAndSyncTimestamp(queueItem.id)
   }
}

private suspend inline fun Flow<Result<TimeStampBasedResponse>>.removeQueueItemAndSyncTimestamp(
   queueId: Long
) {
   this.collectLatest {
      it.onSuccess {
         pendingSyncQueueRepo.removeFromQueue(queueId)
         preferencesRepository.updateLastSyncedWithServerTimeStamp(it.data.eventTimestamp)
      }
   }
}

@Serializable
data class TimeStampBasedResponse(
   val eventTimestamp: Long,
   val message: String
)

content_copy

This way, we can confirm the client will definitely send the data to the server (if it gets uninstalled, we can't do anything about it).

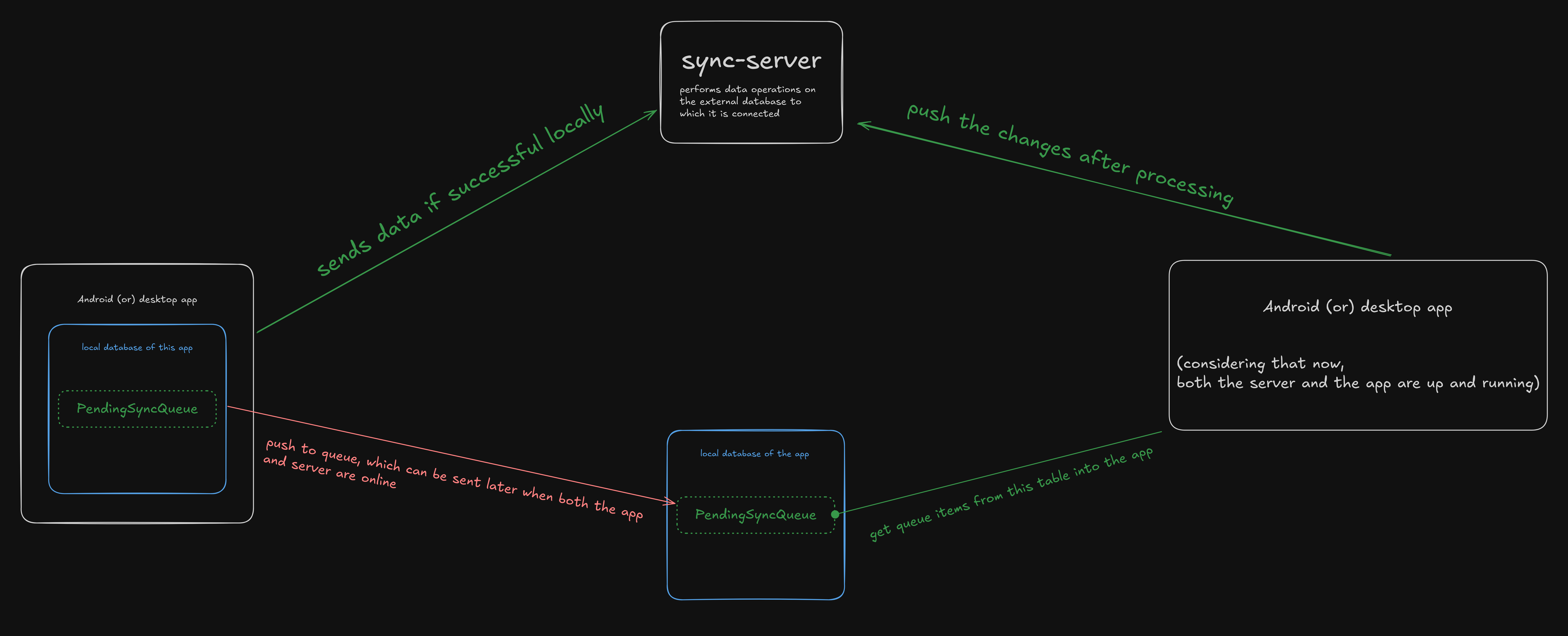

In conclusion, the following image should give you a clear idea of how all these components work together to ensure

Client-to-Server

 sync works as expected:

Now on the server-side, LWW (Last Write Wins) is implemented for some routes where updating is required. This makes sure the server only updates newer values in case all clients and the server aren't up at the same time:

// on server-side
private fun checkForLWWConflictAndThrow(id: Long, timeStamp: Long) {
   transaction {
      FoldersTable.select(FoldersTable.lastModified).where {
         FoldersTable.id.eq(id)
      }.let {
         if (it.single()[FoldersTable.lastModified] > timeStamp) {
            throw LWWConflictException()
         }
      }
   }
}
---
override suspend fun markAsArchive(idBasedDTO: IDBasedDTO): Result<TimeStampBasedResponse> {
   return try {
      checkForLWWConflictAndThrow(id = idBasedDTO.id, timeStamp = idBasedDTO.eventTimestamp)
      // further impl
   } catch (e: Exception) {
      Result.Failure(e)
   }
}

content_copy

To support this, every table contains a column called

lastModified

, which will also be sent in the POST request body and is needed for the

sync-server

:

@Entity(tableName = "folders")
@Serializable
data class Folder(
   val name: String,
   val note: String,
   val parentFolderId: Long?,
   @PrimaryKey(autoGenerate = true)
   val localId: Long = 0,
   val remoteId: Long? = null,
   val isArchived: Boolean = false,
   val lastModified: Long
)

content_copy

2. Server-to-Client

Client-to-Server

 focuses on pushing changes, while

Server-to-Client

 focuses on reading changes that occurred on the remote database through the server.

The app saves a

TIME_STAMP

 in its preferences, updated at every successful remote request. The

TIME_STAMP

 value is sent from the server (since server operations happen there).

Changes can be read in two ways:

1.

Using sockets

 if both app and server are online.

2.

Custom implementations

 if the client is offline or disconnected from the server.

1. Using sockets if both app and server are online

When both app and server are online, it’s simple: use sockets and update as required. Linkora App handles this as follows:

private suspend fun updateLocalDBAccordingToEvent(
   deserializedWebSocketEvent: WebSocketEvent
) {
   when (deserializedWebSocketEvent.operation) {
      MARK_FOLDER_AS_ARCHIVE.name -> {
         val idBasedDTO = json.decodeFromJsonElement<IDBasedDTO>(
            deserializedWebSocketEvent.payload
         )
         if (idBasedDTO.correlation.isSameAsCurrentClient()) {
            preferencesRepository.updateLastSyncedWithServerTimeStamp(idBasedDTO.eventTimestamp)
            return
         }

         val folderId = localFoldersRepo.getLocalIdOfAFolder(idBasedDTO.id)
         if (folderId != null) {
            localFoldersRepo.markFolderAsArchive(
               folderId, viaSocket = true
            ).collectAndUpdateTimestamp(idBasedDTO.eventTimestamp)
         }
      }
   }
}

content_copy

Similarly handle for every possible operation.

2. Custom implementations if the client is offline or disconnected from the server

We need to handle two scenarios if the client is offline or disconnected from the server:

1. Handling deletions.

2. Updating data after the last known

TIME_STAMP

.

2.1 Handling deletions when offline

We track deleted items using a server-side

Tombstone

 table structured as:

object TombstoneTable : LongIdTable("tombstone") {
   val deletedAt = long("deleted_at")
   val operation = text("operation")
   val payload = text("payload")
}

content_copy

The following example should give a brief idea about how this table is used:

transaction {
   TombStoneHelper.insert(
      payload = Json.encodeToString(idBasedDTO),
      operation = LinkRoute.DELETE_A_LINK.name,
      deletedAt = eventTimestamp
   )
   LinksTable.deleteWhere {
      id.eq(idBasedDTO.id)
   }
}

content_copy

And now on the client side, when both the app and server are online, we pull these tombstone records and delete the corresponding items locally.

2.2 Updating data after the last known TIME_STAMP

As mentioned earlier, the local database in the app contains a column called

lastModified

. Similarly, tables in the remote database also include this column. The app sends its last known

TIME_STAMP

 to the server, which returns all changes made after that timestamp:

LinksTable.selectAll().where {
   LinksTable.lastModified.greater(TIME_STAMP)
}.toList().forEach {
   updatedLinks.add(
      Link(
         id = it[LinksTable.id].value,
         linkType = LinkType.valueOf(it[LinksTable.linkType]),
         title = it[LinksTable.linkTitle],
         url = it[LinksTable.url],
         baseURL = it[LinksTable.baseURL],
         imgURL = it[LinksTable.imgURL],
         note = it[LinksTable.note],
         idOfLinkedFolder = it[LinksTable.idOfLinkedFolder],
         userAgent = it[LinksTable.userAgent],
         markedAsImportant = it[LinksTable.markedAsImportant],
         mediaType = MediaType.valueOf(it[LinksTable.mediaType]),
         eventTimestamp = it[LinksTable.lastModified]
      )
   )
}

content_copy

Now the collected updates will be sent back to client, which it will update accordingly.

In conclusion, the following images should give you a clear idea of how all these components work together to make sure

Server-to-Client

 sync operates as expected:

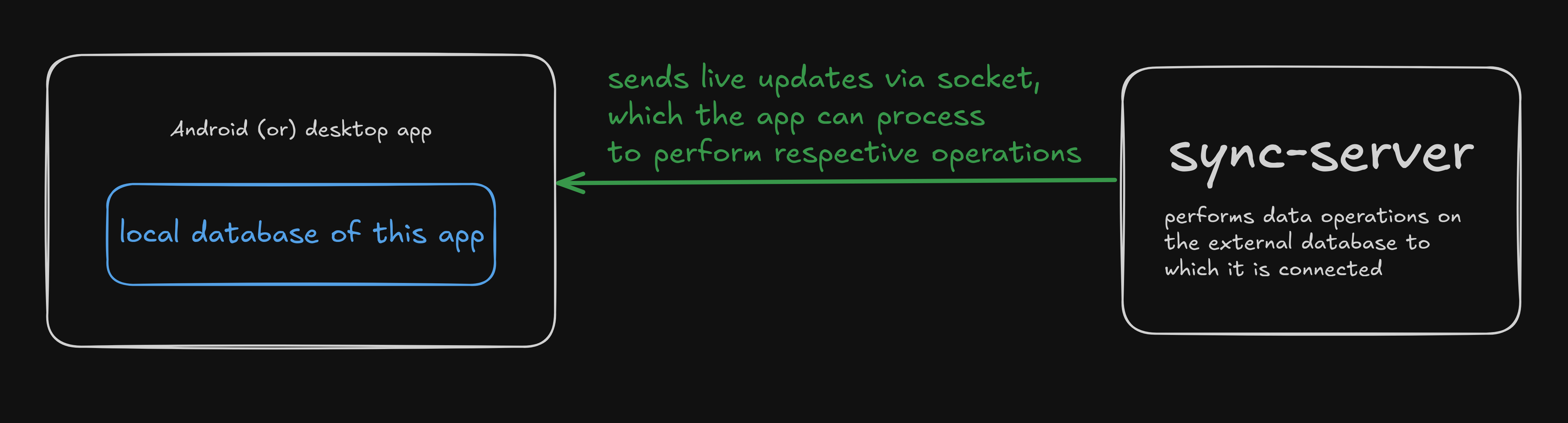

1. If both app and server are online.

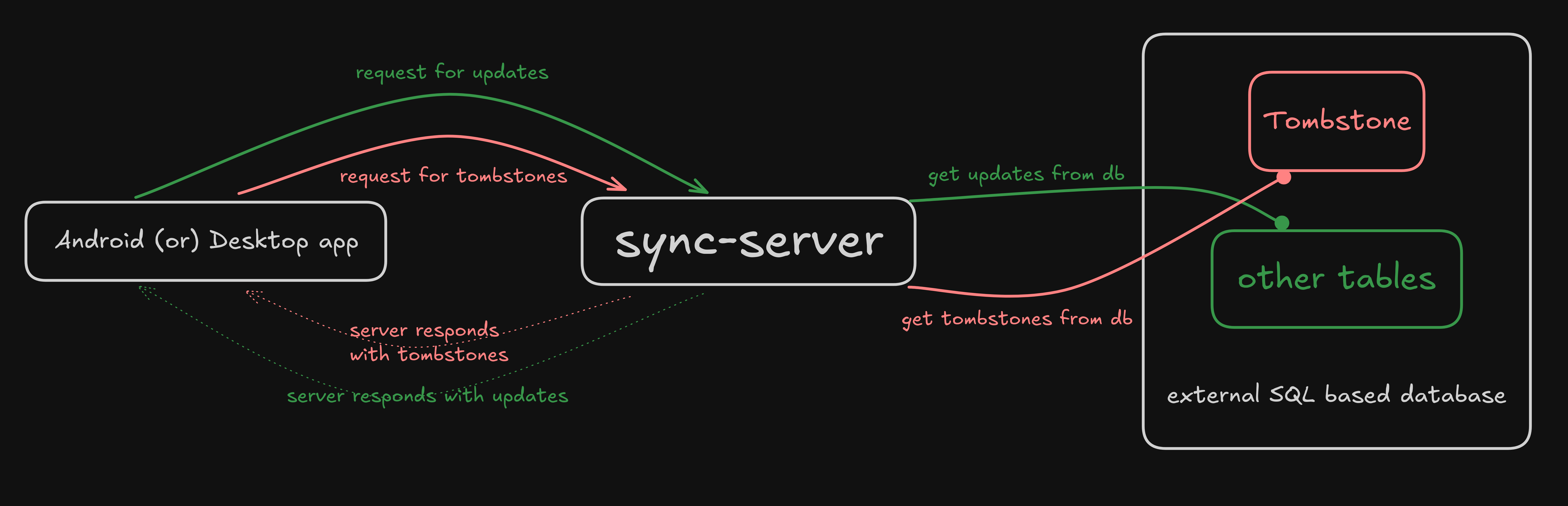

2. If the client is offline or disconnected from the server.

Overall, this is how synchronization works in Linkora. These operations are also used when performing manual syncing or importing data from external files, but that is outside the context of this topic, hence I didn't include it.
